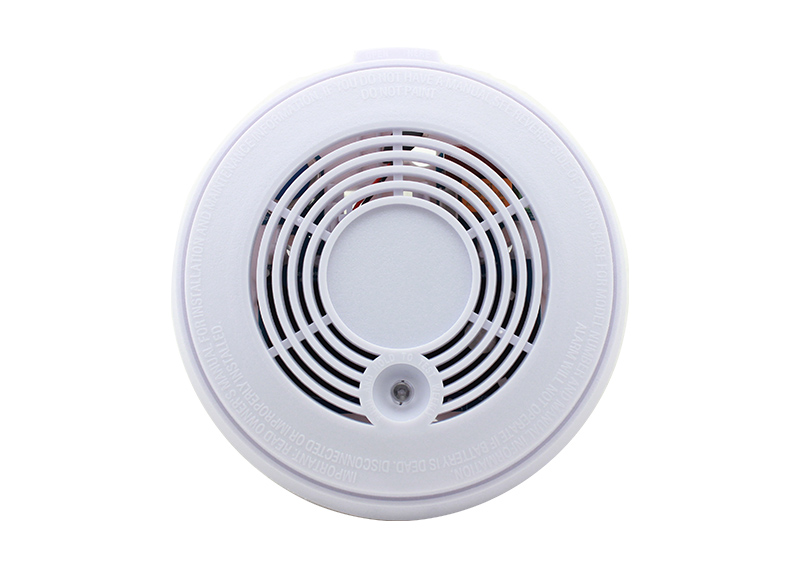

CO&Smoke Detector Series-LS-868-9

Thank you for purchasing LS-868-9 carbon monoxide and smoke combination detector. This is one Single Station detector. Please take a few minutes to thoroughly read this user’s guide and save for future reference.

Watch Video

Technical Parameters

Power Supply: one 9V carbon zinc battery 6F22.

Sensitivity Setting:

CO: Alarm Density:

50ppm, alarms within 60~90 minutes

100ppm, alarms within 10~40 minutes

300ppm, alarms within 3 minutes

SMOKE: 1%~5%/FT OBS

Standby Current: <25uA Alarm Current: <45mA Operation Ambient Condition: 5~400C, 20~90%R.H. Sensors: electrochemical sensors and photoelectric sensors (3 years’ service life ) [/av_textblock] [/av_one_half] [/av_section] [av_section min_height='custom' min_height_px='450px' padding='huge' shadow='no-border-styling' bottom_border='no-border-styling' id='' color='main_color' custom_bg='' src='' attachment='' attachment_size='' attach='scroll' position='top left' repeat='no-repeat' video='' video_ratio='16:9' overlay_opacity='0.5' overlay_color='' overlay_pattern='' overlay_custom_pattern='' av_uid='av-13xbvly'] [av_one_full first min_height='' vertical_alignment='' space='' custom_margin='' margin='0px' padding='0px' border='' border_color='' radius='0px' background_color='' src='' background_position='top left' background_repeat='no-repeat' animation='' av_uid='av-135k08m'] [av_heading tag='h3' padding='10' heading='Product Spec' color='' style='blockquote modern-quote modern-centered' custom_font='#ffffff' size='36' subheading_active='' subheading_size='15' custom_class='' av_uid='av-3nlpdy'][/av_heading] [av_hr class='custom' height='50' shadow='no-shadow' position='center' custom_border='av-border-thin' custom_width='50px' custom_border_color='#222222' custom_margin_top='30px' custom_margin_bottom='30px' icon_select='no' custom_icon_color='' icon='ue808' font='entypo-fontello' av_uid='av-1086xba'] [av_textblock size='' font_color='' color='#ffffff' av_uid='av-xdq0dy']

Main Featur
Mode	Muti-gas detector	Stabdalone	leD indication
ls-868-9	√	√	√
ls-868-9AD	√	√	√

Technology Parameter
Model	Operating voltage	Sensitivity	Alarm current	Standalone current	SPL
ls-868-9	DC9V	100ppm	≤45mA	≤25uA	≥85db(3m)
ls-868-9AD	DC9V	100ppm	≤45mA	≤25uA	≥85db(3m)

Download Spec
