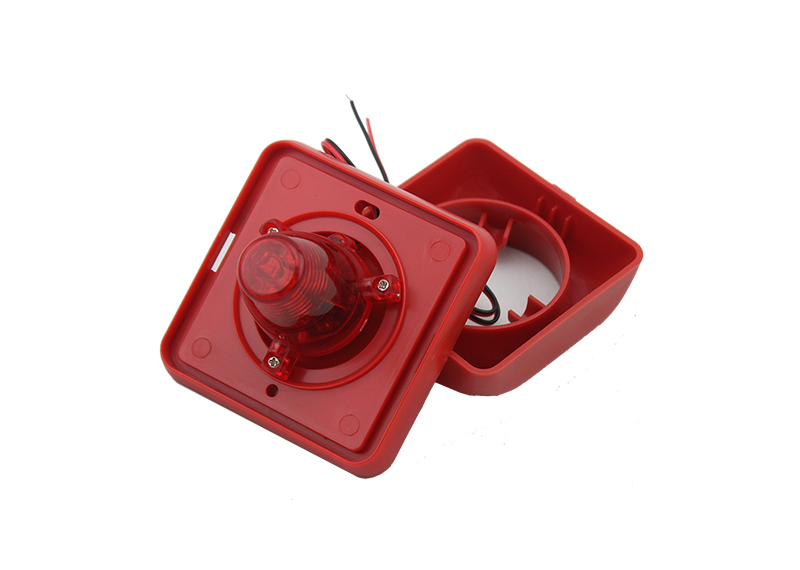

Strobe Siren Series-LS-106

This product is re alarm siren(the following we use alarm to refer it)which is the sound and light alarm equipment installing on eld triggered by the re alarm controller of the re ghting control center.Once triggered,the alarm will sent out the strong signals with sound and light so that it can warn the site personnel.The alarm having strong sound and light is specially suitable for the re ghting alarm.It helps warn the people avoiding the great loss of the life and the property.

Watch Video

Technical Parameters

1.High quality ABC plastic casing of anti retardant,shock resistance,low temperature resistance,good heat resistance,good insulation

2.Independent louder speaker,big alarm volume,strong light

3.Nice appearance,big sound,be suitable for installing on the corridors,windows and other places

4.Sleek design having decorated function.

5.Red color appearance has strong warning sensor

Working Voltage:DC12V-30V ; Rated Voltage:DC24V

Rated Current:<=70mA Flash frequency:On 88mS/off 492mS Sound Level： >105dB+-3dB

Working temperature:-25–+55(°C )

Working humidity:<=--95(%) [/av_textblock] [/av_one_half] [/av_section] [av_section min_height='custom' min_height_px='450px' padding='huge' shadow='no-border-styling' bottom_border='no-border-styling' id='' color='main_color' custom_bg='' src='' attachment='' attachment_size='' attach='scroll' position='top left' repeat='no-repeat' video='' video_ratio='16:9' overlay_opacity='0.5' overlay_color='' overlay_pattern='' overlay_custom_pattern='' av_uid='av-42donc'] [av_one_full first min_height='' vertical_alignment='' space='' custom_margin='' margin='0px' padding='0px' border='' border_color='' radius='0px' background_color='' src='' background_position='top left' background_repeat='no-repeat' animation='' av_uid='av-12rz3yg'] [av_heading tag='h3' padding='10' heading='Product Spec' color='' style='blockquote modern-quote modern-centered' custom_font='#ffffff' size='36' subheading_active='' subheading_size='15' custom_class='' av_uid='av-11o3a54'][/av_heading] [av_hr class='custom' height='50' shadow='no-shadow' position='center' custom_border='av-border-thin' custom_width='50px' custom_border_color='#222222' custom_margin_top='30px' custom_margin_bottom='30px' icon_select='no' custom_icon_color='' icon='ue808' font='entypo-fontello' av_uid='av-3lf1mg'] [av_textblock size='' font_color='' color='#ffffff' av_uid='av-xvr0m0']

Main Featur
Model	Sound of fire engines	flash	Sound of police car	Sound of ambulance	ABS material
LS-106	√	√	√	–	√
LS-106-1	√	–	–	√	√

Technology Parameter
Model	Operating voltage	SPL	Reted current	Alarm current	Environment temperature
LS-106	DC24V	≥88DB	30mA	50-90mA	-10℃~50℃
LS-106-1	DC24V	≥110DB	30mA	50-90mA	-10℃~50℃

Download Spec
